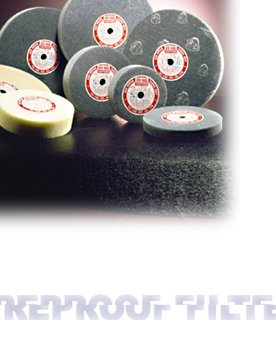

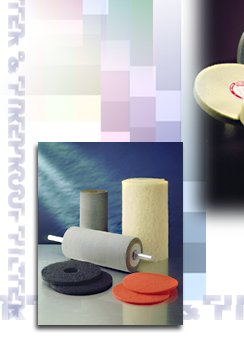

TAI LIN Superior Grinding Wheel is to adopt NYLON 66. Which combines high yough nylon fibre and special glue and it is featured without grinding liquid, wear-proof, rapid radiation, powerful grinding ability, and no residual rubber leftover, it is a high efficiency of grinding wheel manufactured by Tai Lin Co. Ltd. For so many
USE
1. Cleaning effect; for cleaning and maintenance of machinery, hareware, various under polish treatment, and bowling cleaning
2. Decorative grinding pattern treatment.
3. Burl removing
4. Metal polish treatment
5. Woodenware edge line treatment
FEATURES
1. It adopts special processing method to let grinding material adhering onto the fibre if non-woven fiber evenly
2. When grinding, because new grinding material will show up continuously, the roughness of processed
  workpiece's surface can keep for a standard.
3. No matter how complicate is the wlrkpiece , the grinding can be achieved completely
4. It can grind for porous fibre, so the blockade never happend

Suggested operation speed(RPM)

Wheel's outside diameter

Application
6"
8"
10"
12"
14"
16"
18"
Clean
2400
1800
1400
1200
1000
900
800
Grinding pattern treatment
1800
1400
1100
900
800
700
600
Burl removing
4200
3200
2600
2200
1800
1600
1400
Metal polish treatment
3600
2700
2200
1800
1600
1300
1200
Woodenware edge line treatment
1600
1200
1000
800
700
600
550
